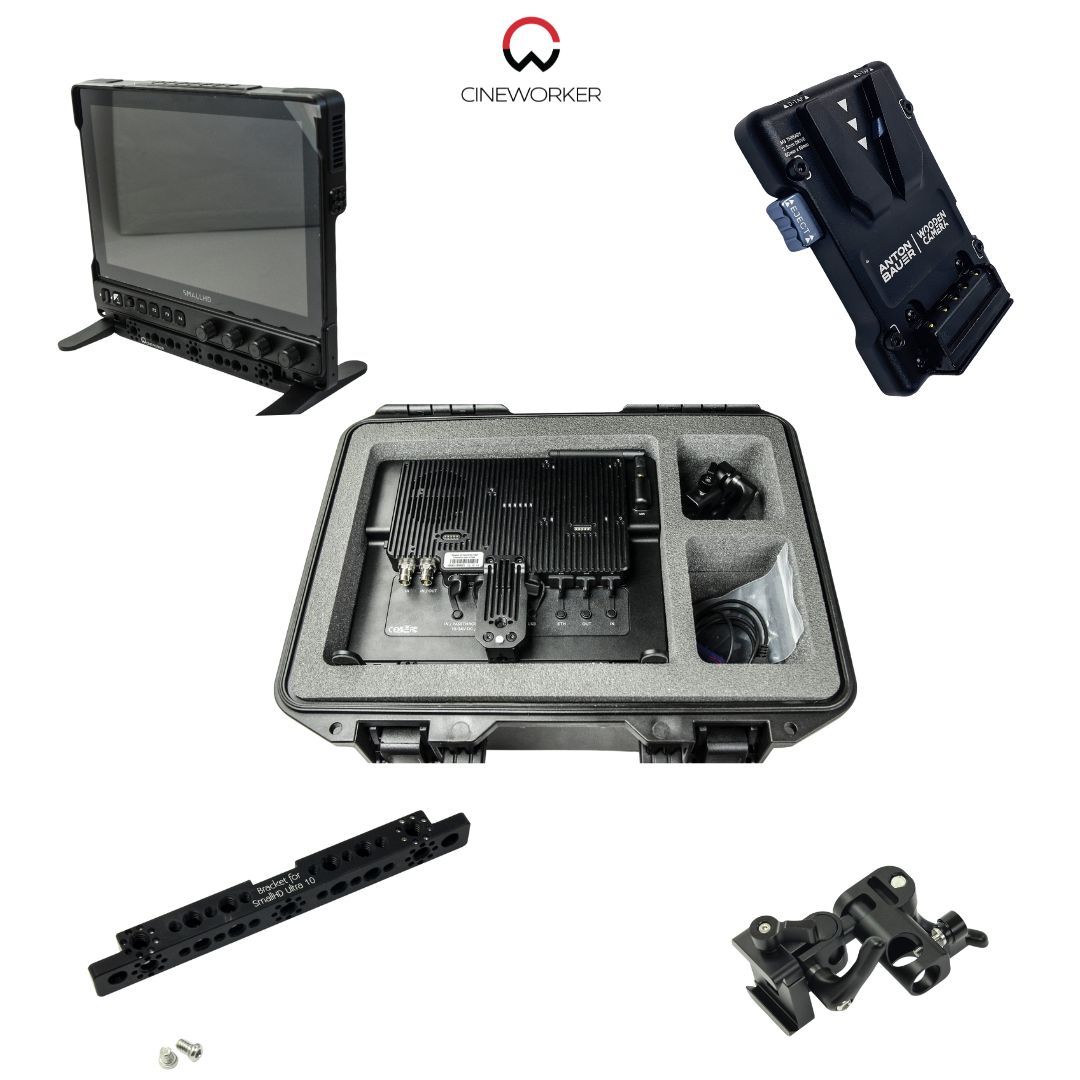

A complete SmallHD Ultra 10 package at one place.
Consisting of:
1. SmallHD Ultra 10 monitor in original packaging with 1 year of warranty

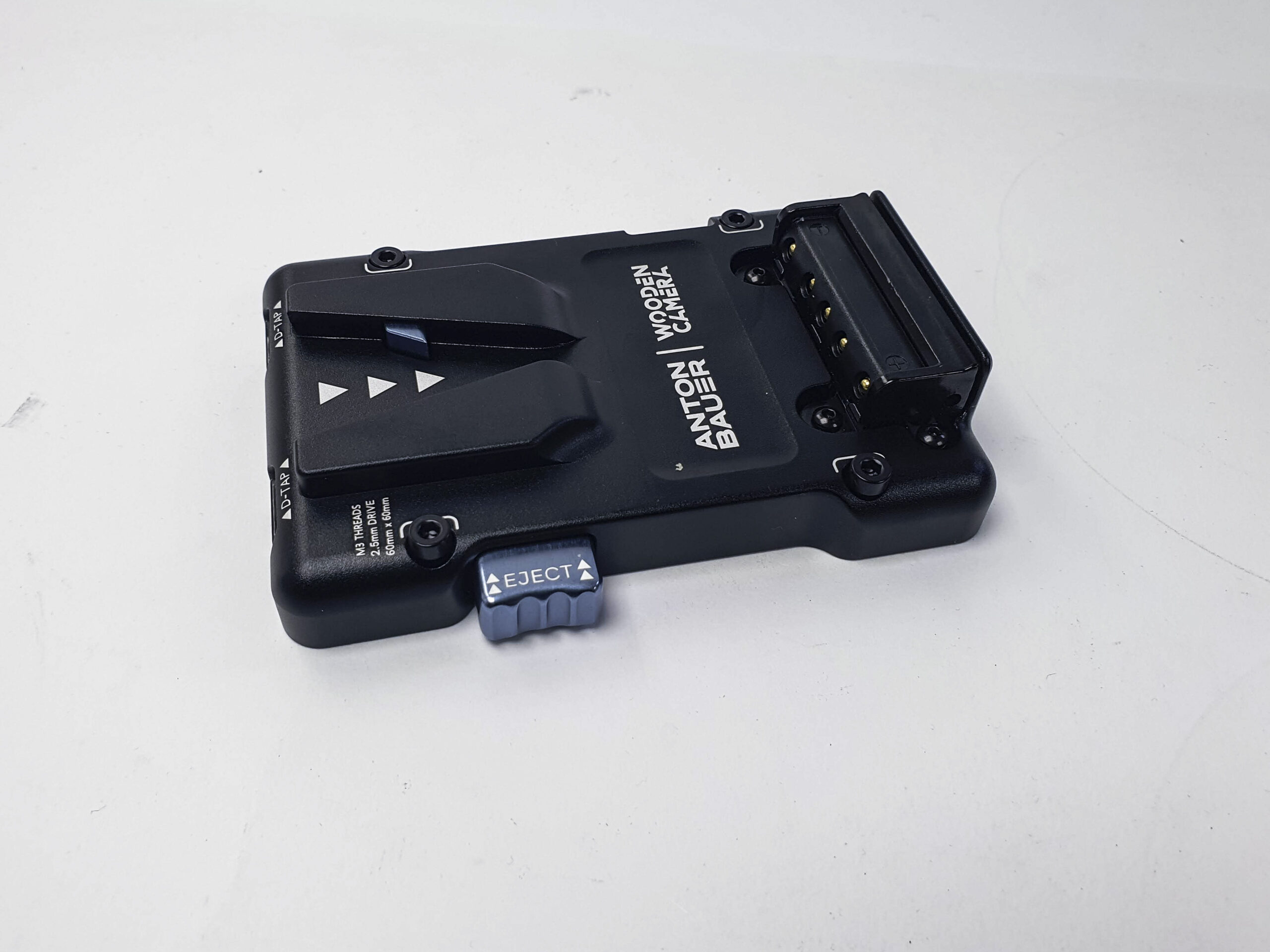

2. Wooden Camera V-mount plate for the Monitor (on request we can provide Gold Mount)

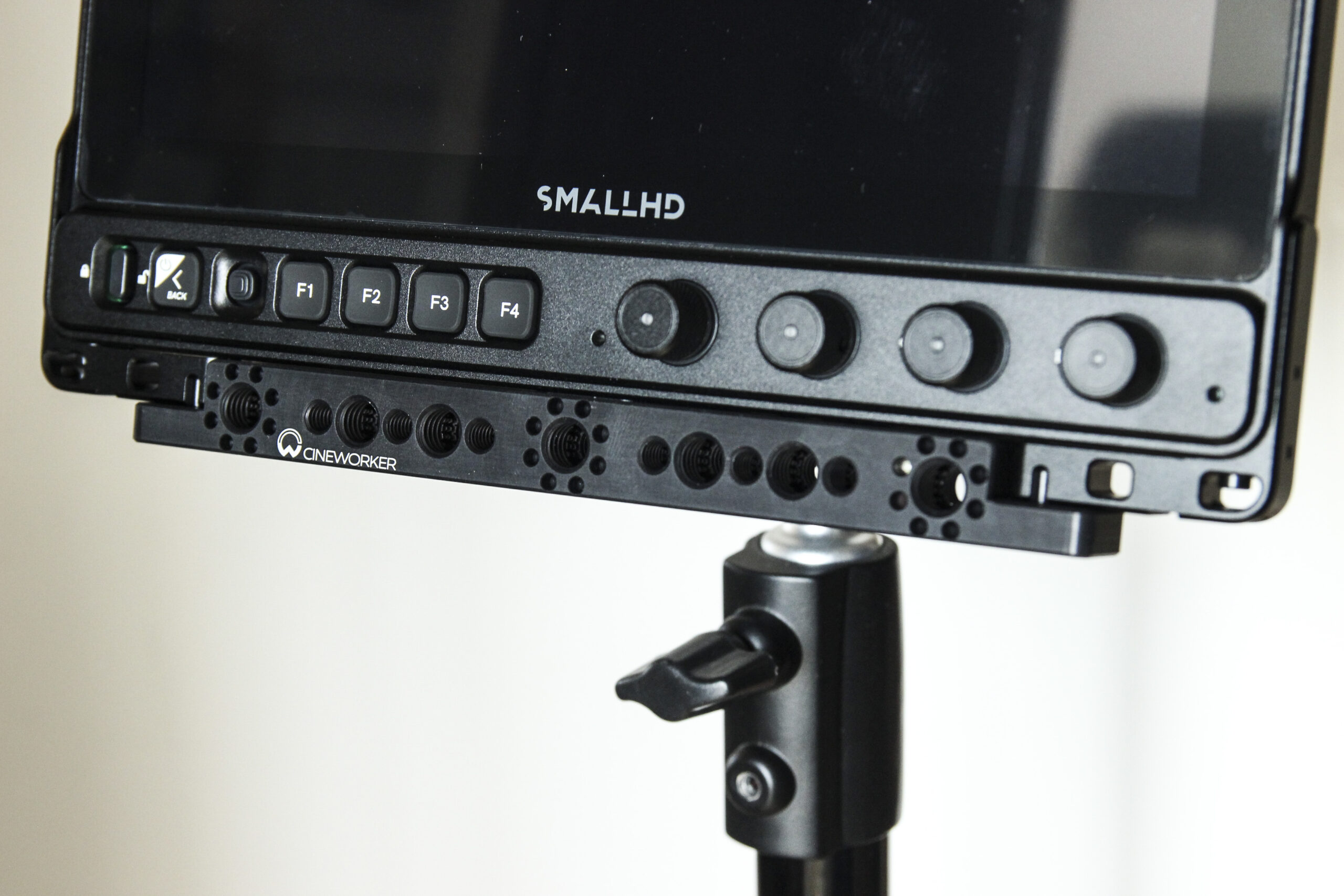

3. Cineworker Mounting Bracket for the Ultra 10 monitor

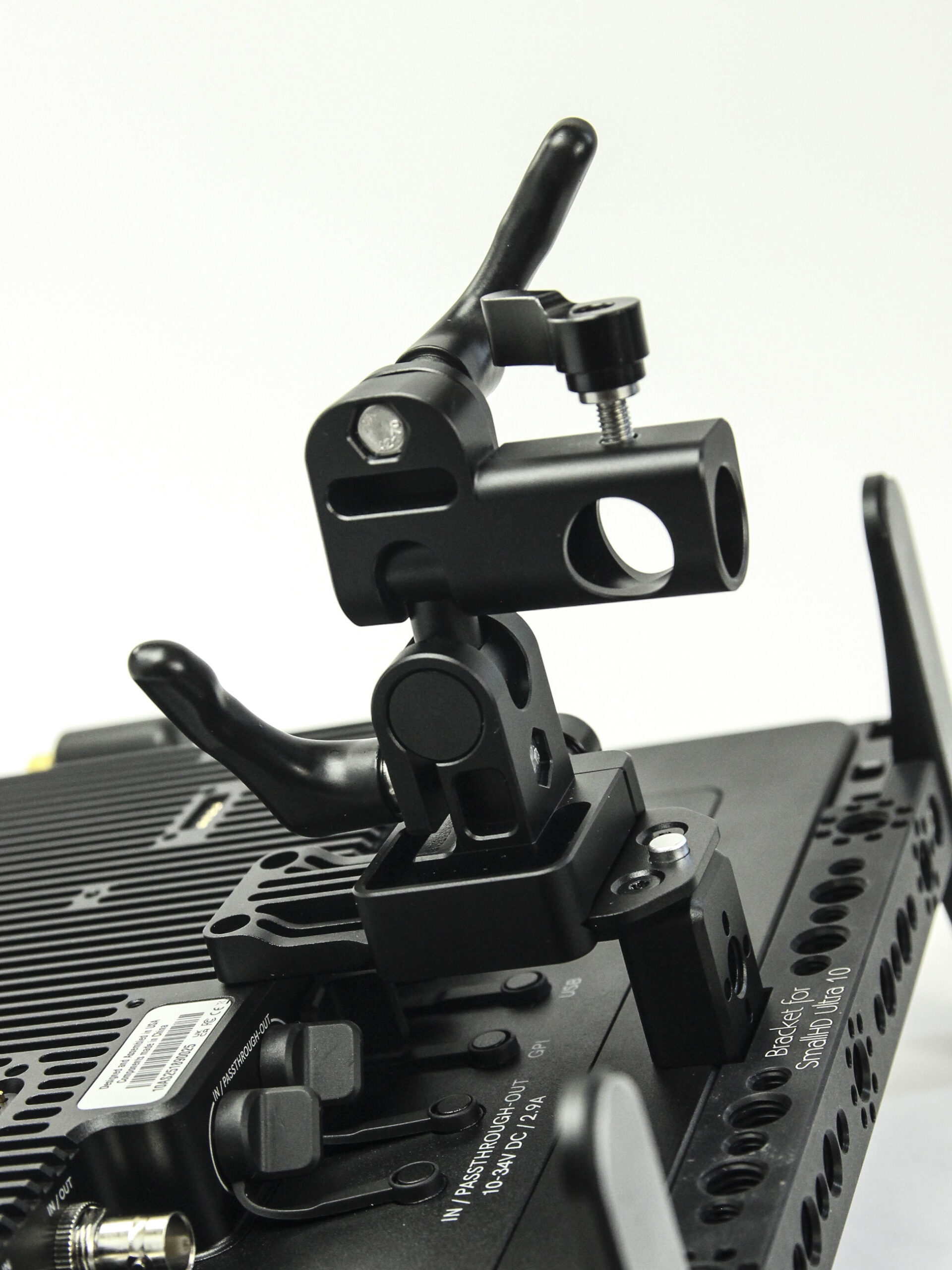

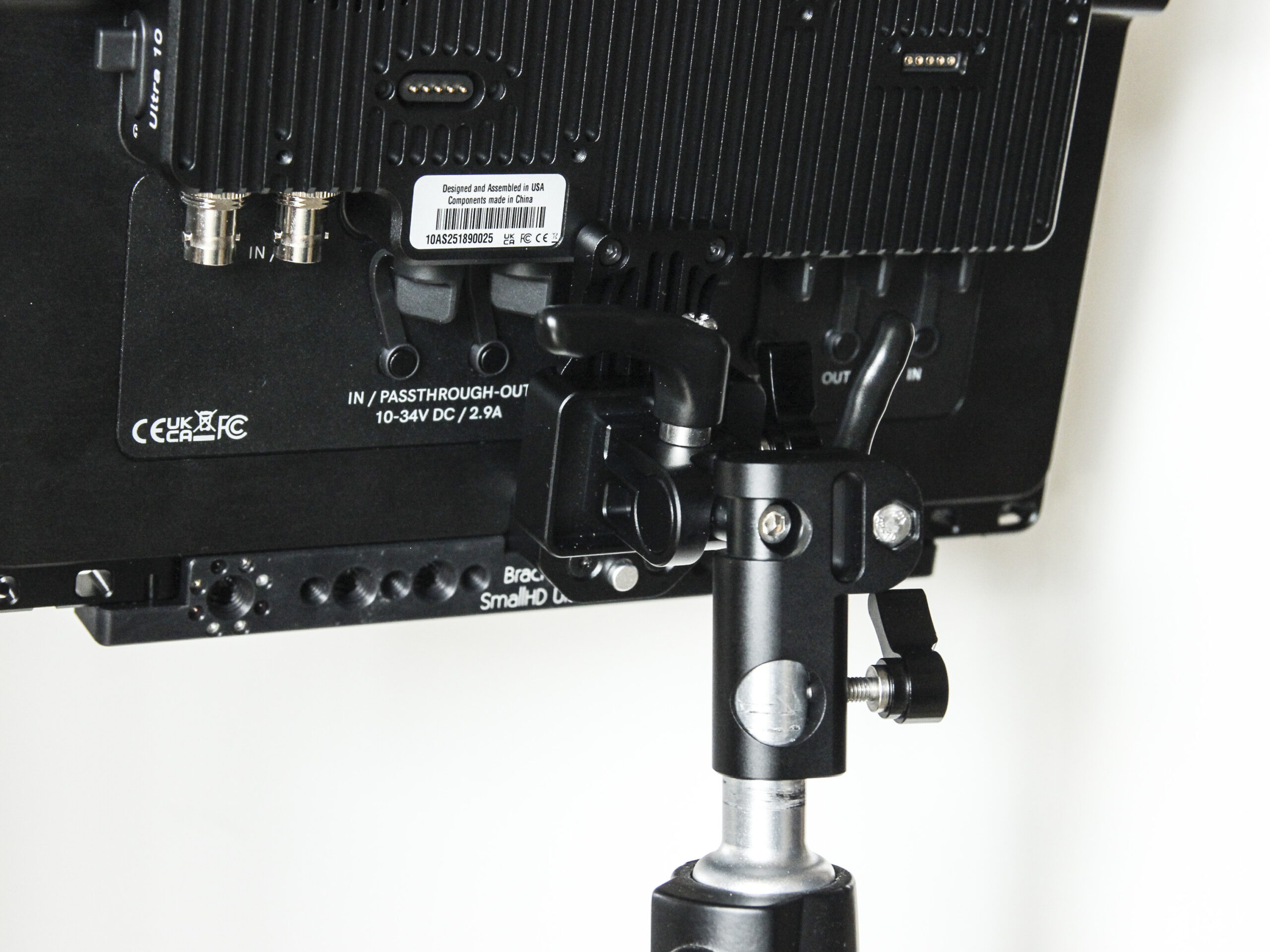

4. ARCA QR articulating monitor mount (Baby Pin, C-stand) – lighweight and small, ideal for this monitor

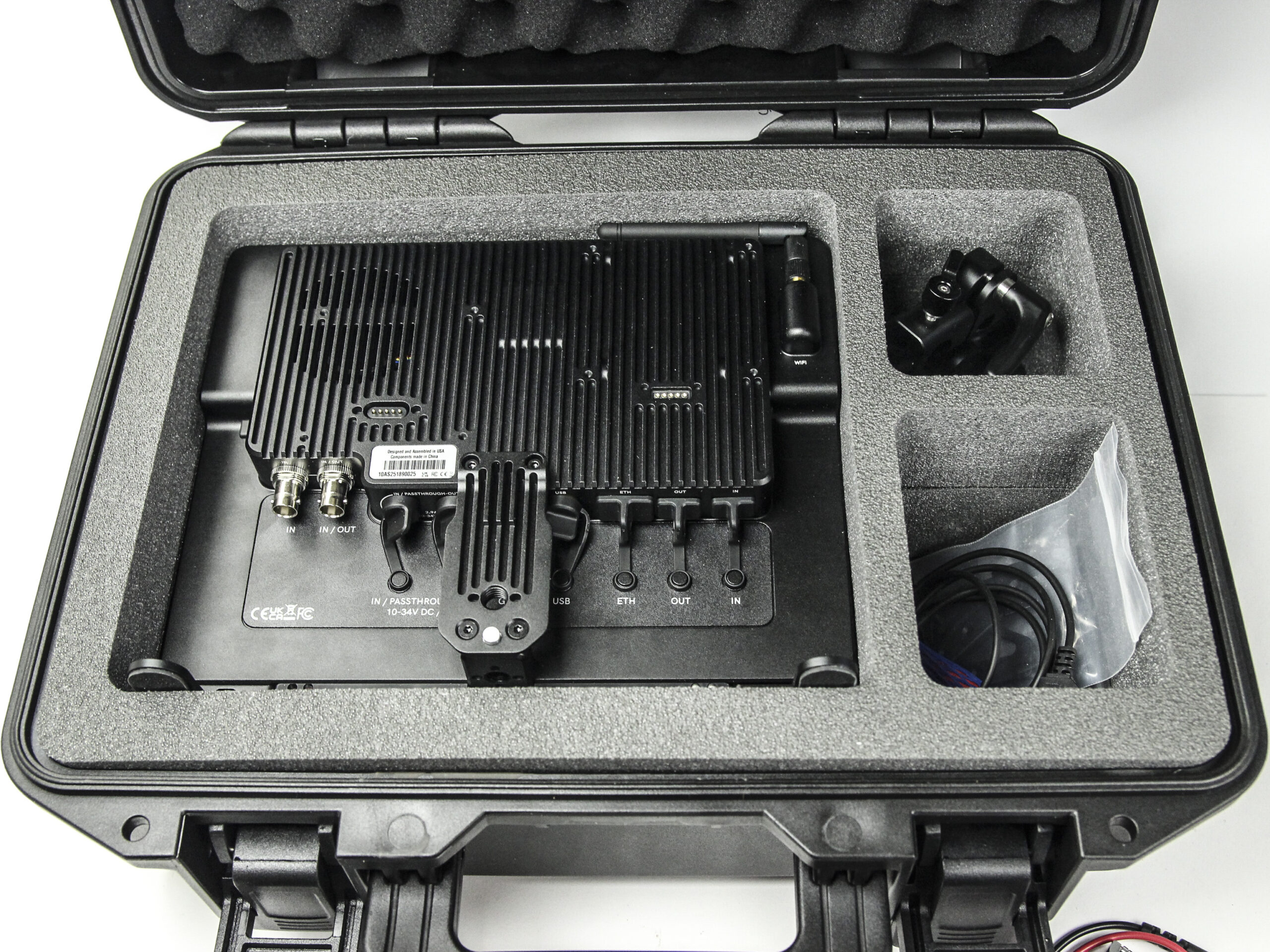

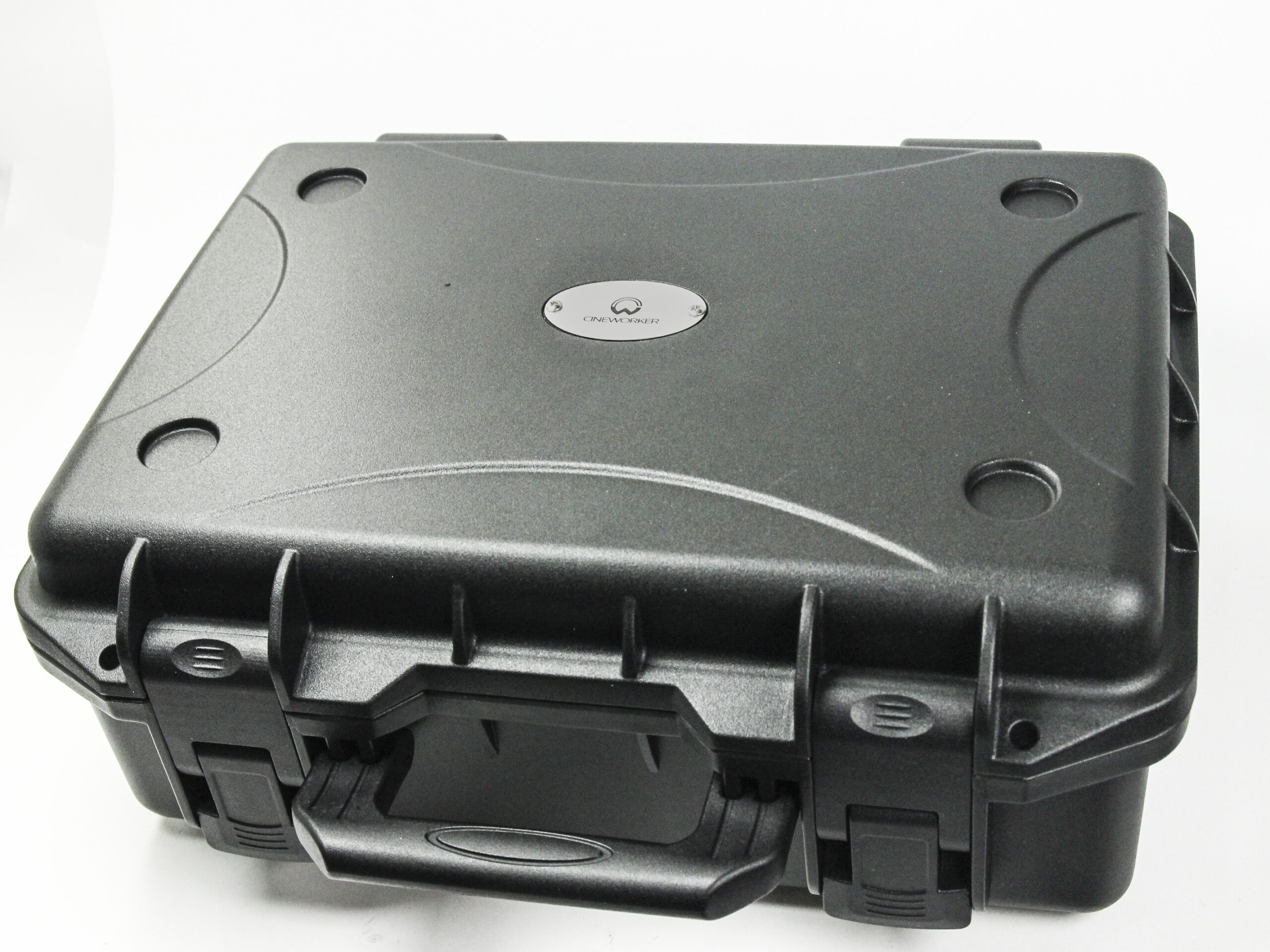

5. Travel Case with precisely cutout foam – for safe transport and protection of your gear
SmallHD Ultra 10 specification:

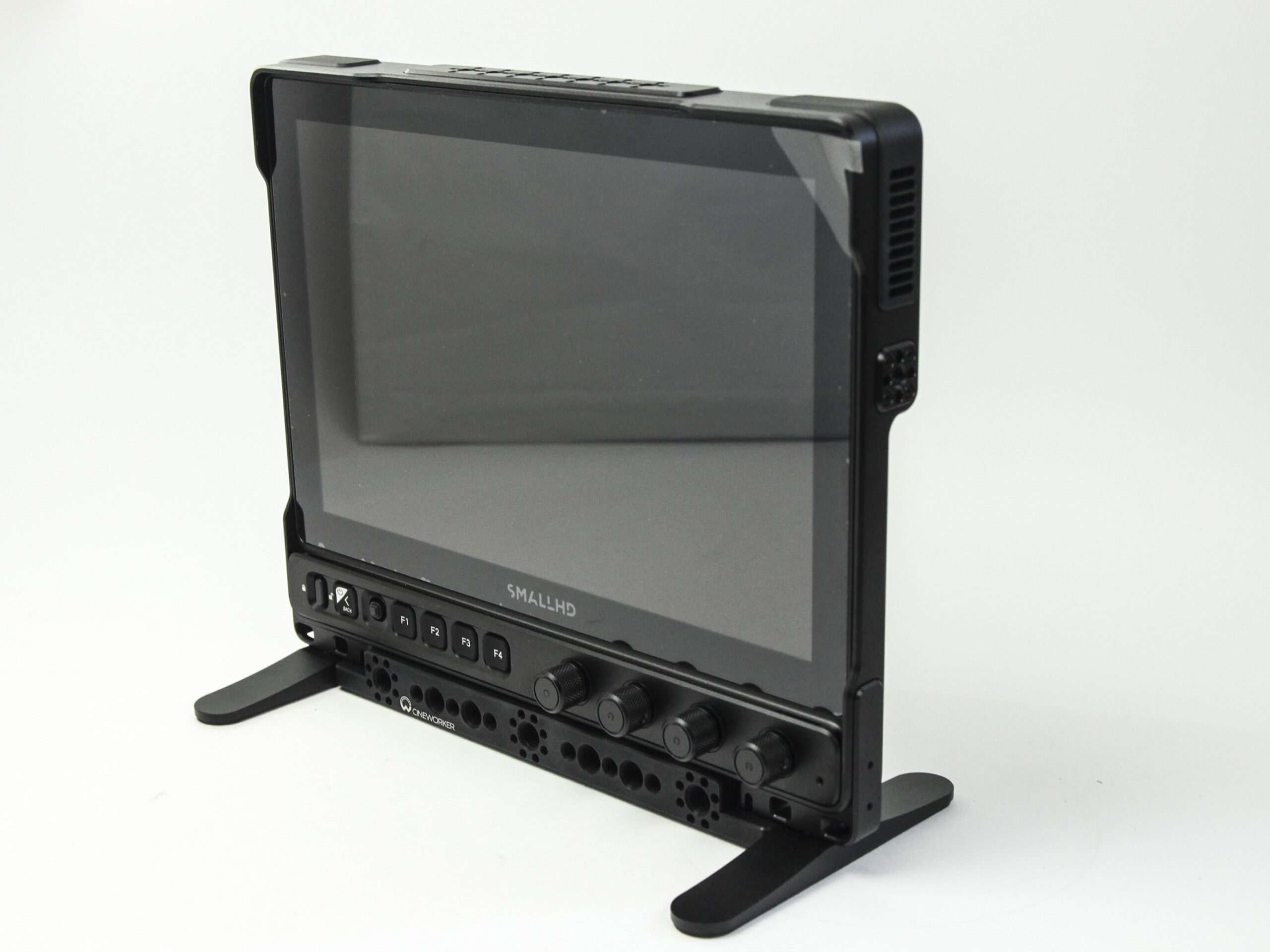

SmallHD introduces the new Ultra 10, a powerful, bright, and rugged 10-inch touchscreen monitor. With its outstanding 2000 nits brightness, joystick, customizable function buttons, and several new multifunctional controls, this monitor offers maximum control for professional productions. It’s ideal for focus pullers, pursuit vehicles, directors, DITs, and anyone looking for a bright monitor in a robust and portable design.
The Ultra 10 can be customized with PageOS tools and functions and supports 4K signals at up to 60 fps via 6G-SDI. In addition to an Ethernet port for ARRI and Sony Venice cameras, it features a 5-pin USB port for RED Camera Control (Camera Control license and cable sold separately). With an optional Gold or V-Mount micro battery plate, the Ultra 10 is suitable for use in all situations and under any conditions. This impact-resistant monitor operates in temperatures ranging from sub-zero to extreme heat up to 40°C.
With Multi-View tools via PageOS, it’s possible to display two camera feeds and multiple tool pages simultaneously, side by side on the screen.
Also, the monitor is optionally available with a built-in Teradek Bolt 6 wireless video transmission system, fully integrated into the housing. The built-in Bolt 6 units utilize the clear RF signals of the newly opened 6 GHz spectrum. The RX models are compatible with all Teradek Bolt 6 units and backward compatible with any Bolt 4K system in 5 GHz mode.
Features:
- 10-inch camera control monitor with a resolution of 1920 x 1200 pixels
- Touchscreen with 2000 nits brightness
- 6G-SDI for modern 4K end-to-end workflows
- QD-LED Edge-Lit LCD panel technology
- Built-in WiFi receiver
- Impact-resistant, dustproof, and waterproof with IP54 rating
- Configurable function buttons and multifunctional controls for high-end use
- Camera control compatible with all current SmallHD licenses
- Ports for ARRI, RED, and Sony Venice (licenses and cables sold separately)
- Locking power connector
- SD card slot
- Lemo USB port
- Option on wireless video transmission with Teradek Bolt 6 (separate product version)
Tech Specs:
- 1x BNC 6G input (4Kp30)
- 1x BNC 6G input/output (4Kp30)
- 1x HDMI input (4Kp60)
- 1x HDMI output (4Kp60)
- Full-size HDMI Type-A ports
- Ethernet port for ARRI camera control and Sony Venice; 5-pin USB port for RED® camera control (camera control license and cable sold separately)
- Lemo USB port
- Power input (2-pin) (10-34V, 2.9A)
- Pass-Thru power (2-pin) (10-34V, 2.9A)
- Optional Gold or V-Mount micro battery plates
- 3.5mm headphone jack
- Battery connections: 6.0 V to 16.8 V
- Weight: approx. 1497 g
What comes with the SmallHD Ultra 10 monitor (in original packaging):
- 1x Ultra 10
- 1x 8GB SD card
- 1x D-Tap to 2pin Power Cable 36in
- 1x Ultra Screen Protector for Ultra 10
- Set of Ultra 10 Dust Covers
- 1x SmallHD 4K Monitor Feet (Set)
- 1x SmallHD Cleaning Cloth
- 1x Ultra 10 Dial Protector D-Ring
- 1x Ultra 10 Dial Guard
